CRAWLER CRANE
MARCHETTI CW-25.35

MARCHETTI CW 25.35 SHERPINA crawler crane. Equipped with Perkins Diesel Engine Euro 5. Max load 25 tons. Max outreach 25 mt. Max height 27 mt, with JIB 35 mt. Rotation 360°. Winch 110 meters with 14 mm rope diameter, 3.3 tons counterweight. Crawler traction with two epicycloidal reducers with automatic spring brake and variable displacement hydraulic piston motors. Extensible crawler.

Crawler crane MARCHETTI CW-25.35 for sale online:

Price Discount Net Price
422,000 EUR -20% 337,600 EUR

taxes excluded, prices subject to change without notice. Last update: 26th May 2024

May 26, 2024

25 tons
max load
35 mt / 115 ft
max hook height with JIB
25.5 tons
weight

buy now
download

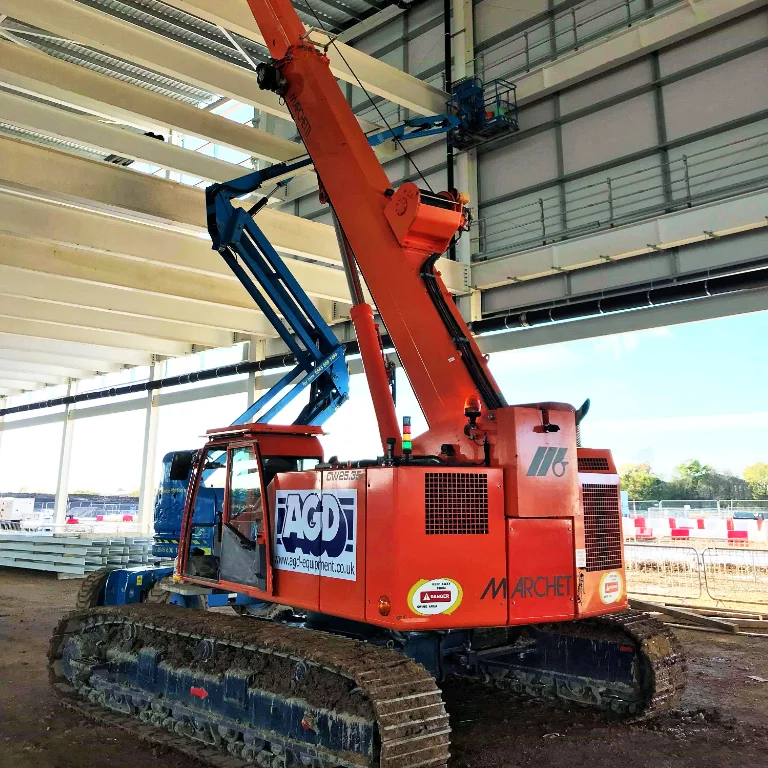

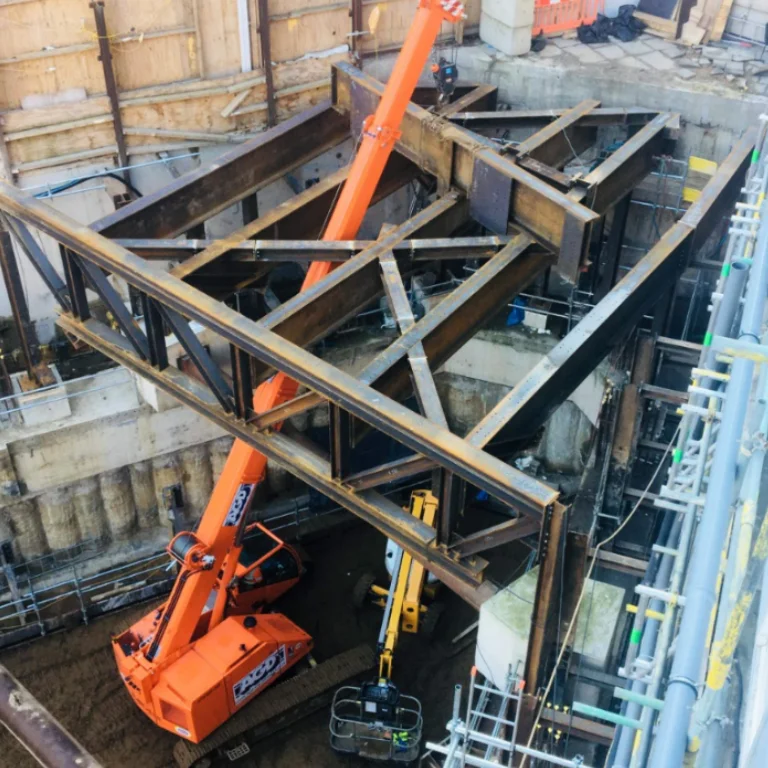

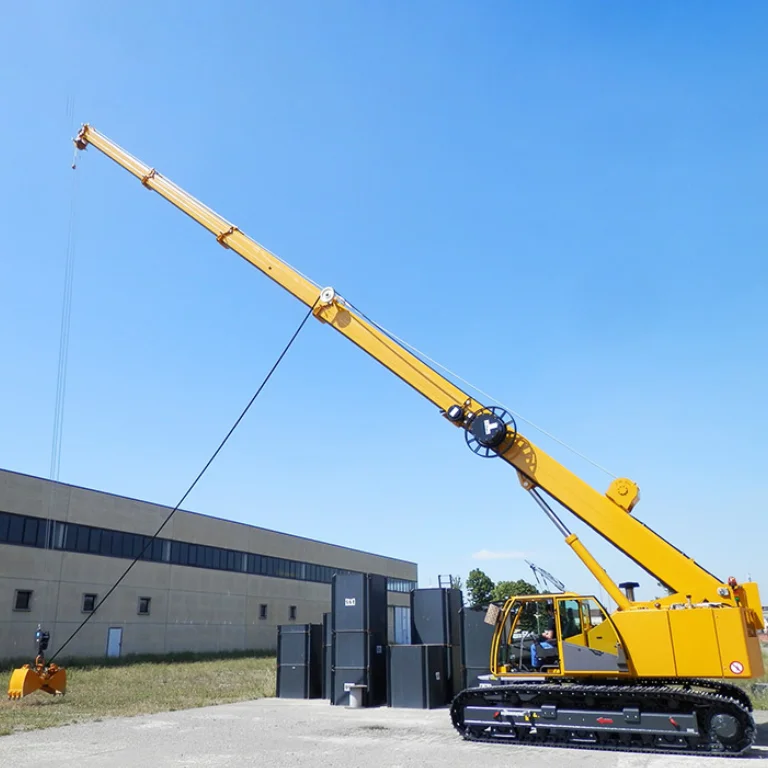

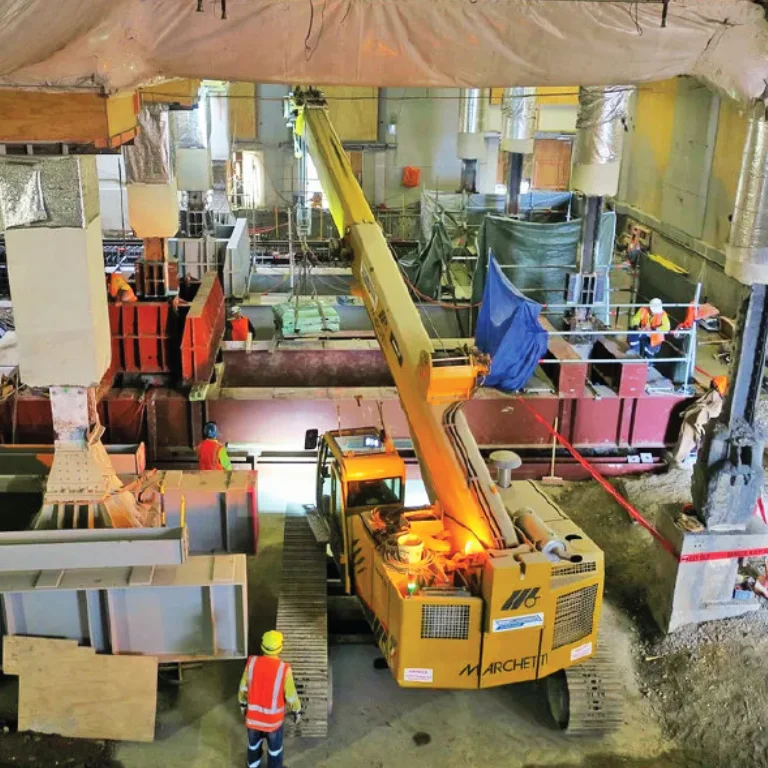

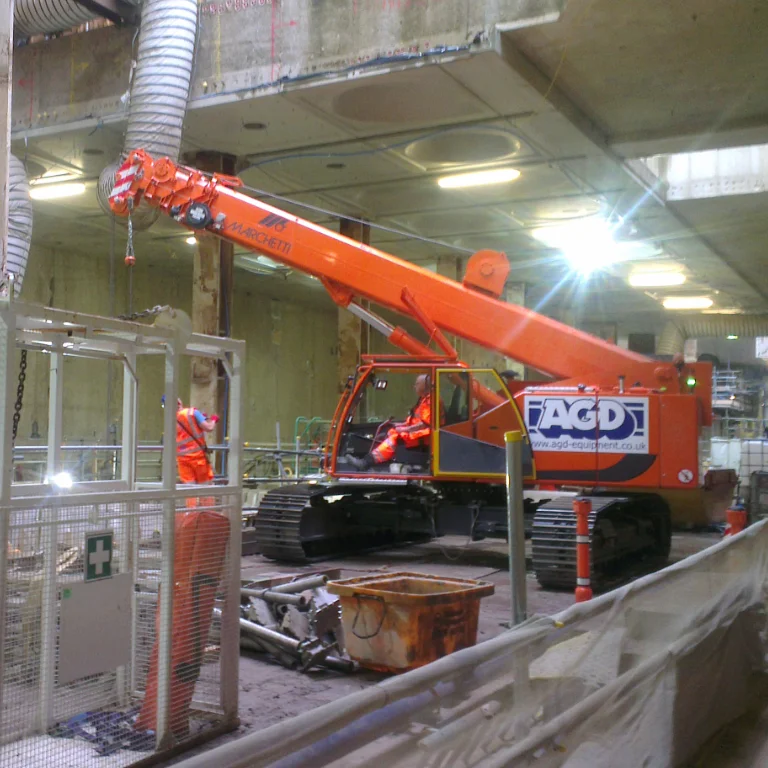

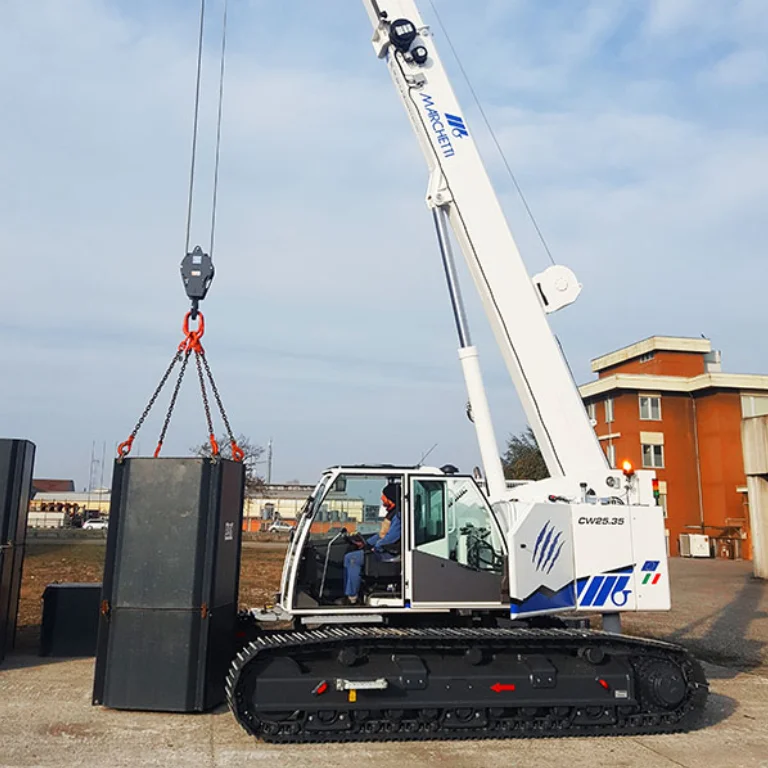

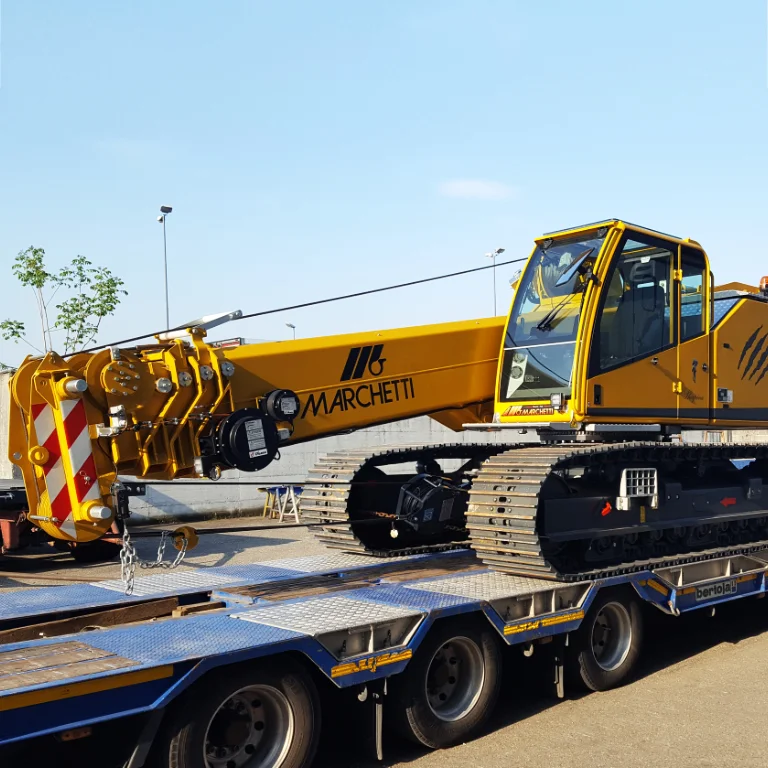

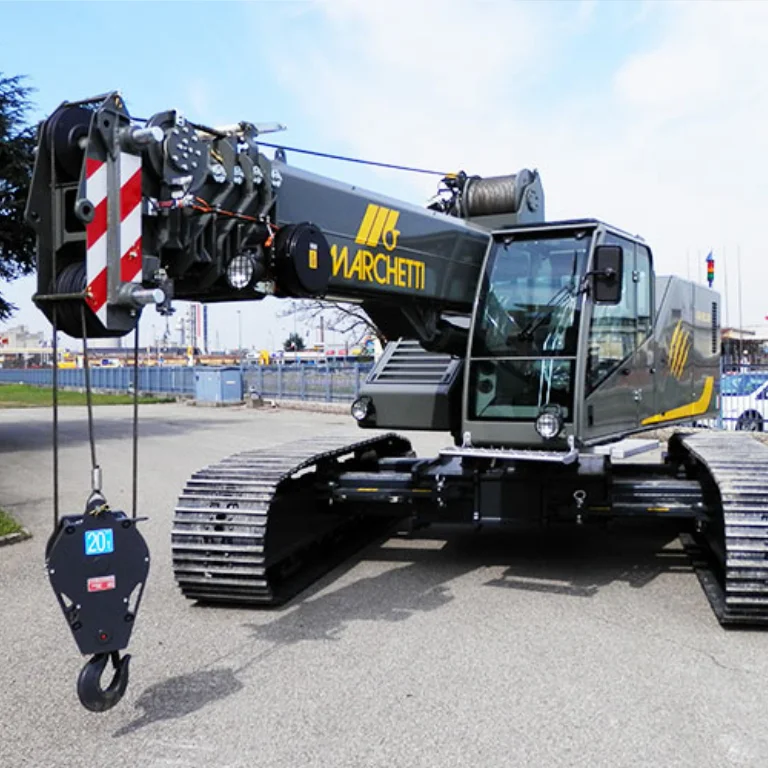

photos CRAWLER CRANE MARCHETTI CW-25.35

crawler-crane marchetti cw-25.35 photos
crawler-crane marchetti cw-25.35 photos
crawler-crane marchetti cw-25.35 photos
crawler-crane marchetti cw-25.35 photos
crawler-crane marchetti cw-25.35 photos
crawler-crane marchetti cw-25.35 photos
crawler-crane marchetti cw-25.35 photos
crawler-crane marchetti cw-25.35 photos
crawler-crane marchetti cw-25.35 photos
crawler-crane marchetti cw-25.35 photos
crawler-crane marchetti cw-25.35 photos

worldwide delivery
available

delivery time
90 days + shipping

payment terms
30% at order - 70% before shipping

wrong translation?

product reference CRAWLER CRANE MARCHETTI CW-25.35

  • category: CRAWLER CRANE
  • brand: MARCHETTI
  • model: CW-25.35
  • country of origin: ITALY
  • SKU code: MRCPRCRW1125
  • HS/HTS code (Harmonized Tariff Schedule): (*)
  • NCM code: (*)
  • availability: OnlineOnly
  • item condition: NewCondition

(*) HS/HTS/NCM codes may be incorrect, please request a verification before to place the order.

e.u. guarantee

E.U. legislation provides a Free of charge, 2 years guarantee for private person, and 1 year for company (legal guarantee) on faulty goods, for all products we sell, this is important because it is a guarantee that the goods sold by us are covered by European protection. All goods we sell are invoiced by Silcom North UAB, a company registered in Vilnius, Lithuania. Every product we send is checked before departure, but in case there are any problems, the customer is required to notify us as soon as possible, and must not use the product until our withdrawal. In case the customer needs a repair, we are always available to assist him, even after the warranty expires.

why choose us

Because for 50 years we have been dealing with industrial supplies, we have seen technology evolve and needs change. Because we are used to working with customers from all over the world, because we believe that after-sales service is as important as the technical preparation of our staff. We like to listen to requests, and propose the best solutions.

videos CRAWLER CRANE MARCHETTI CW-25.35

Marchetti autogru spa begun his activity in 1956, is a reference point for the domestic market and can count on over 2500 mobile cranes sold and present on sites situated worldwide. the facilities today extend over an area of 46,000 s.m. (over 150,000 sf), 16,000 (52,500) of which are roofed. since 1998 the company is certified iso 9001 (reg. no 4026). the headquarters of marchetti autogru spa are in piacenza, via caorsana, 49.


Marchetti sherpina 25 tons telescopic crawler crane lifted into basement site in london


features CRAWLER CRANE MARCHETTI CW-25.35

Board Computer

Board computer

board computer with machine control and electronic limiting device (lmi) operated in can-bus, crawler track monitoring

Boom

Boom

high resistance steel telescoping boom with one base section, one indipendent telescopic section, three syncronized telescopic sections, from 7 to 25.5 meters extension

Electric System

Electric system

24 vdc. two 120ah batteries with can-bus data system

Slewing system

Slewing system

continuous 360° rotation achieved by one orbital hydraulic motor with epicyclic reducer and automatic multiple discs brake in oil bath

Hoist Gear

Hoist gear

piston hydraulic motor with epicyclical reducer and automatic multiple disk brake, grooved drum

Undercarriage

Undercarriage

torsion resistant frame with extendable crawler carriers and locking rods. standard 800mm triple grouser shoes

Counterweight

Counterweight

one cast iron element ballast, 3.3 tons, pinned to the superstructure

Safety devices

Safety devices

3-color warning signal light positioned on the front. buzzer. rotating light. fire extinguisher.

Limiting System

Limiting system

lifting hoist limit switch, safety and pressure valves, emergency stop device and electronic moment limiter device

Hydraulic System

Hydraulic system

load sensing hydraulic system with variable displacement piston pump and power adjustment for crane and crawlers operation, up to 4 contemporary manoeuvres, with oil cooler

Boom Elevation

Boom elevation

differential hydraulic cylinder equipped with piloted load control valve

Hook block

Hook block

20 tons hook block with three pulleys

Gear box

Gear box

automatic zf, 12 forward and 2 reverse speeds
